Drilling depth: 400m
Drilling diameter: 105-400mm
Engine Power: 132Kw
Drilling diameter: 105-400mm
Engine Power: 132Kw

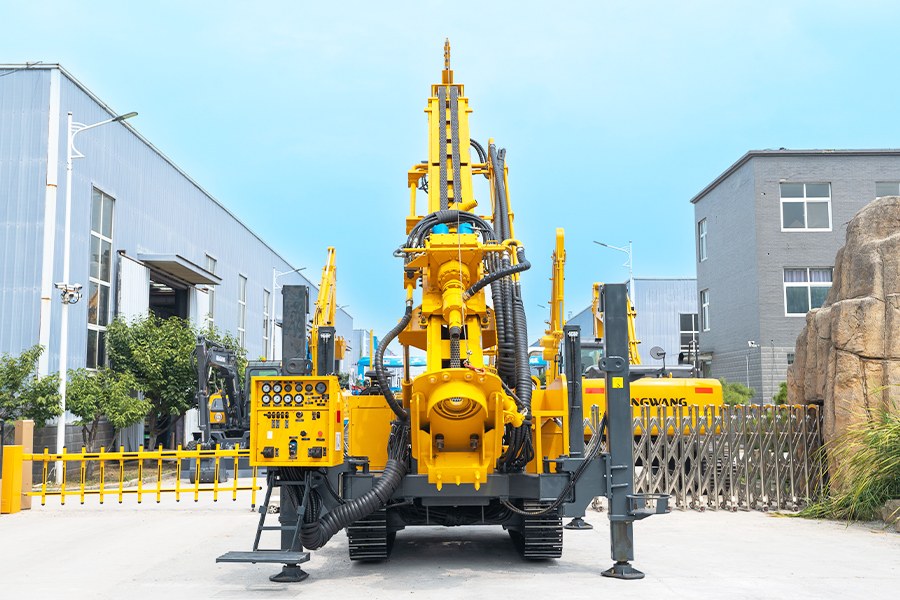

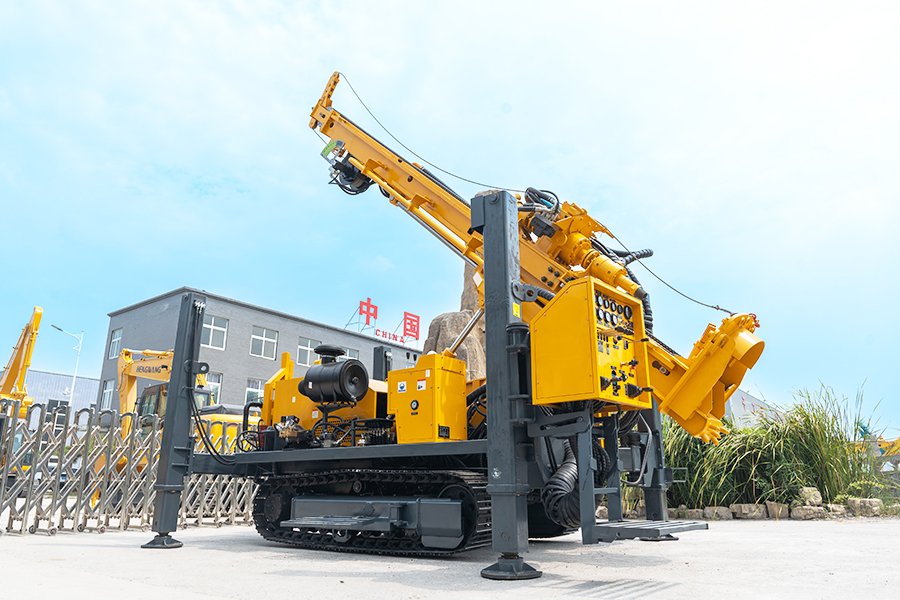

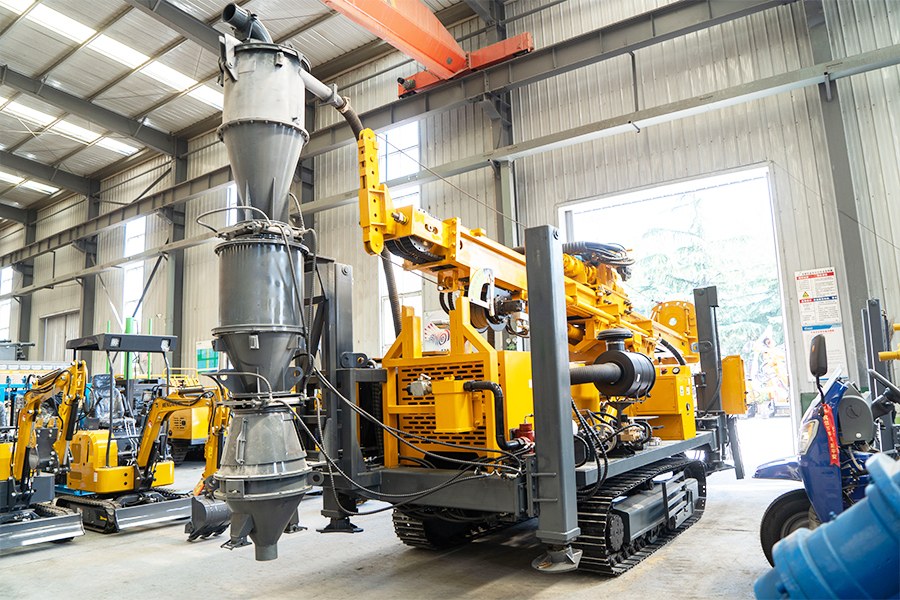

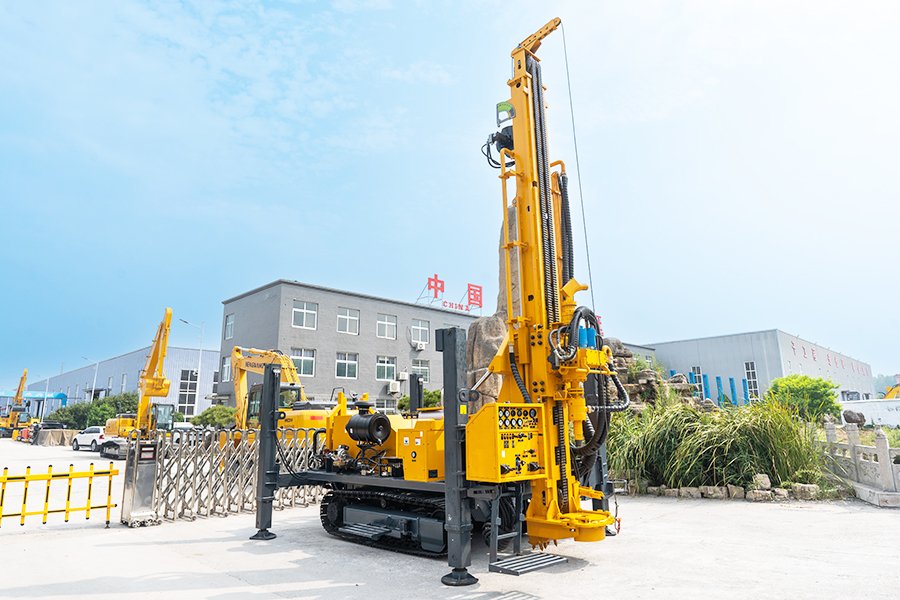

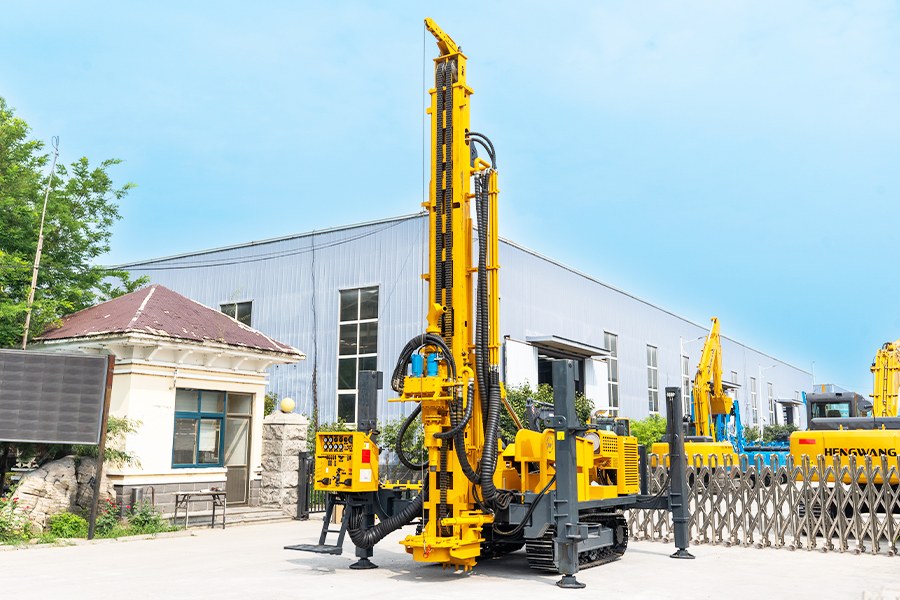

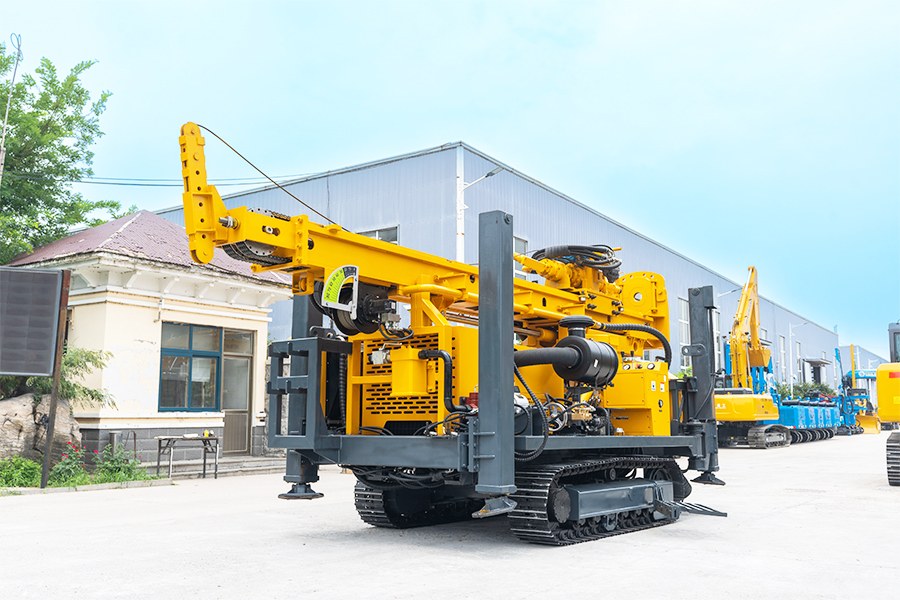

| Model | HW-RC500 |
|---|---|
| Engine | Cummins Engine |
| Power | 132 kW |
| Maximum Drilling Depth | 400 m |
| Drilling Diameter | 105–400 mm |
| Working Air Pressure (MPa) | 1.6–6MPa |
| Total Air Consumption | 16–55 m³/min |
| Drill Rod Length | 3 m |
| Drill Rod Diameter | Φ102/Φ114mm |
| Axial Pressure | 7 t |
| Lifting Capacity | 25 t |
| Slow Lifting Speed | 23m/min |
| Fast Lifting Speed | 33m/min |
| Rotational Torque | 10000/5000 Nm |
| Rotational Speed | 0–75 r/min; 0–150 r/min |
| Feed Efficiency | 10–35 m/h |
| Travel Speed | 2.5 km/h |
| Climbing Ability | 21° |
| Machine Weight | 12t |
| Dimensions | 7×2.1×2.8m |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
Fill in the form to get the latest product parameters and the best price.
